PD METERS FOR TRUCKS, FILLING STATIONS, GAS SUPLY SYSTEMS AND LPG TERMINALS

PD meters from Liqua-Tech are available in various sizes and models. ENERGY Developments & Solutions is offering full range of Liqua-Tech meters and spare parts.

LPM-101

Designed for applications that require accurate recordings for fuel consumption and inventory control.

Operation data:
Flow rate: 12.0 to 68.0 liter/min
MWP: 24 bar
Connections: 3/4" or 1" NPT  flanges
Operating Temperature: -23°C to 52°C

LPM-102

Relaible dispensing unit, the LPM-102 for applications with limited low LPF flow rate.

Designed for retail sales dispensing units, the LPM-102 offers the widest flow range, (12-68 gpm) available in a meter of this type. In addition, the LPM-102 is self contained with all required ccessories including vapor eliminator, strainer and differential valve. Available in a variety of configurations for every application, the LPM-102 can be ordered with registration calibrated in U.S. gallons or liters. An optional automatic temperature compensator is available, and ¾" or 1" flanges may be specified. The Full-Circle Quick-Vent® option allows safe and effective evacuation of the meter for  maintenance and repairs. The LPM-102 is completely compatible with the Neptune 1” Type 4D-MD flowmeter; both in external dimensions and its internal parts.

Consist of:
• Vapor Eliminator
• Strainer
• Differential Valve
• Optional Trac-Bearing Chamber

Flow rate: 12.0 - 68.0 liter/min
MWP: 24 bar
Connections: Standard assembly has an inlet at left and outlet to right with 3/4" and 1" female pipe threads available.
Register: Veeder-Root, Printer available as a option
Temperature Compensation: Compensates to 15°C
Temperature Range: -23°C to 52°C

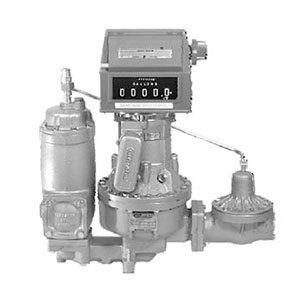

LPM-200

Extremely reliable PD-meter designed for LPG trucks, LPG terminals and LPG supply systems.

At the heart of the model LPM-200 flowmeter is the superior Liqua-Tech measuring chamber. It features a hard-coated piston with special dense metal oxide finish and hardened steel bearing shaft, field proven in thousands of installations. The meter is also available with Liqua-Tech's patented Trac-Bearing® measuring chamber option, for improved accuracy, reliability and lower maintenance. The Trac-Bearing® design controls and stabilizes piston rotation more efficiently than standard control rollers, resulting in greater sustained linear accuracy with less wear. The LPM-200 is equipped with Veeder-Root printing or non-printing registers, for established reliability and lowest operating torque. The meter is also available configured with gear plates, star driver, or spindle only for adaptation to electronic registration units. The exclusive Liqua-Tech register gear plate adapter offers Neptune style change gears for ease of calibration.

Consist of:
• Vapor Eliminator
• Strainer
• Differential Valve
• Optional Trac-Bearing Chamber
• Optional Automatic Temperature Compensator

Main operation data:
Flow rate: 75.0 to 380.0 LPM
MWP: 24 bar
Connections: 2" NPT
Register: Veeder-Root model 789002 (printing) or model 788700 (non-printing), with special Liqua-Tech VRA-Series gear plate adapter.
Temperature Range: -23°C to 52°C
Temperature Compensation: Compensates to 15°C

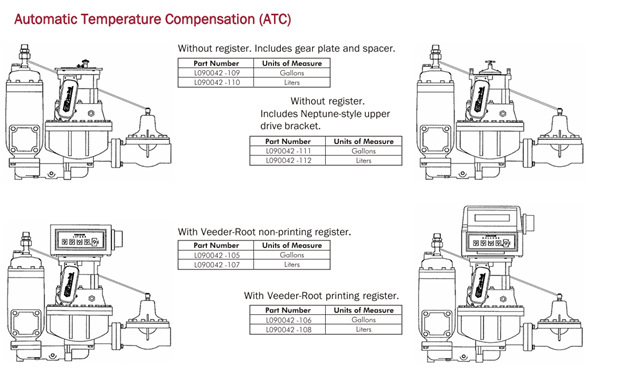

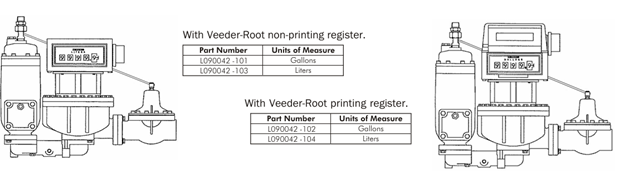

Available configuration of Liqua-Tech PD Meter LPM-200
