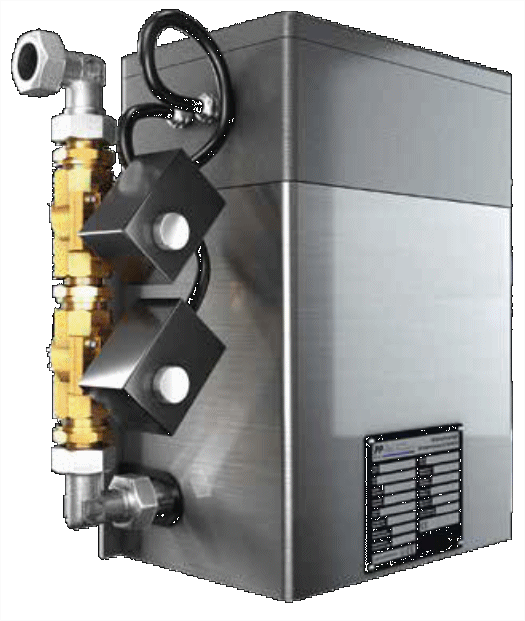

Monophase LPG vaporizers EDS MONO

EDS LPG vaporizers have incorporated the latest trends and ensure the requirements for safe and reliable operation. An international team of engineers from Germany and France successfully completed the task set before them: to develop and implement into serial production of vaporizers with a fully automatic operating principle in the capacity range from 15 to 320 kg/h (bare vaporizers) and up to 1700 kg/h as vaporizer skids.

Scope of documentation:

  • Drawing as build
  • Manual
  • Declaration of conformity EC

Available from stocks in France, Germany, Latvia, South Africa, Turkey, Kazakhstan

MONOPHASE LPG VAPORIZERS - EDS MONO

  • Fully automatic operated dry type vaporizer
  • Heating temperature control and monitoring by PT 100
  • Flood protection redundant
  • Equipped with a solenoid valve controlled by PT 100 and two bimetal switches
  • Overheating protection with safety shutdown
  • Filter, pressure gauges, thermometers, ball valves in the inlet and outlet

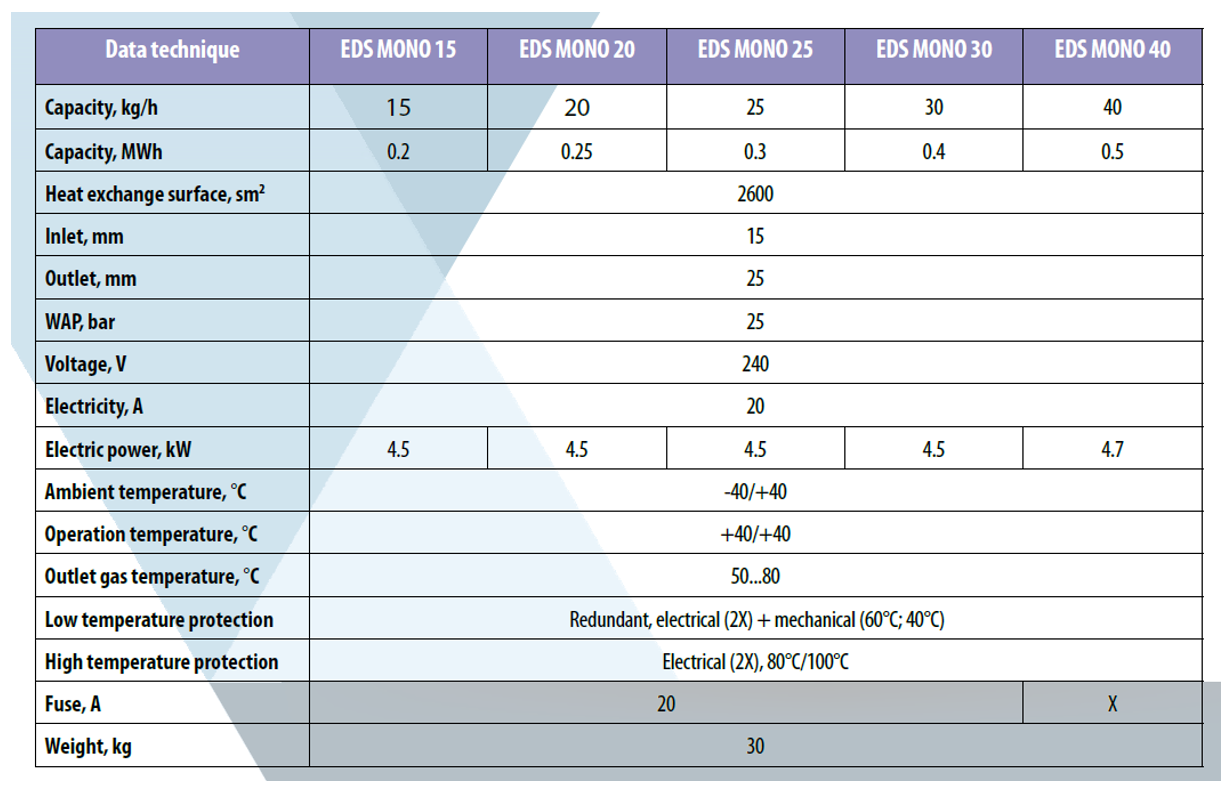

  • Electrical equipment in accordance with DIN VDE 100 for Ex Zone II Operation and technique Data
