Trelleborg

LPG HOSES

HOSE BUTANE PROPANE E – EN 1762:2018 – TYPE D

  • Flexible and lightweight
  • Excellent bending radius
  • Very good coating resistance
  • Evacuation of static electricity ensured by thetube and the earthing braid
  • Pitted coating for the transport of combustible gases
  • Excellent oil resistance

OPERATION DATA

  • Inner tube – NBR resistant to LPG, black, smooth
  • Reinforcement– 2 textile braided plies
  • Cover – CR resistant to oil and weather, black, smooth for diameters <25 mm, grain appearance canvas for diameters ≥25 mm
  • Temperature range – -30...+70°C
  • Electrical Properties – conductive tube, R<106 Ω/lg, diameters ≥25 mm: + two integrated ground braids to discharge static electricity
  • Normes/Homologations – EN 1762:2018 type D
Order No. DN Coil, m
550 0456 DN 13 100
007 1407 DN 19 40
006 0918 DN 25 42
006 0920 DN 32 42
560 6864 DN 38 40
006 0997 DN 50 40
500 9894 DN 75 40

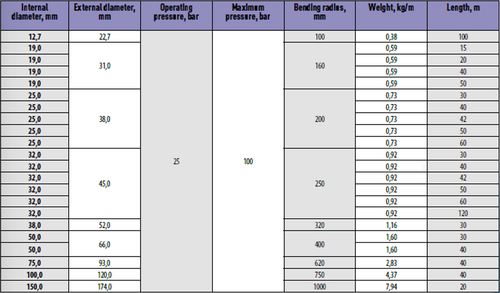

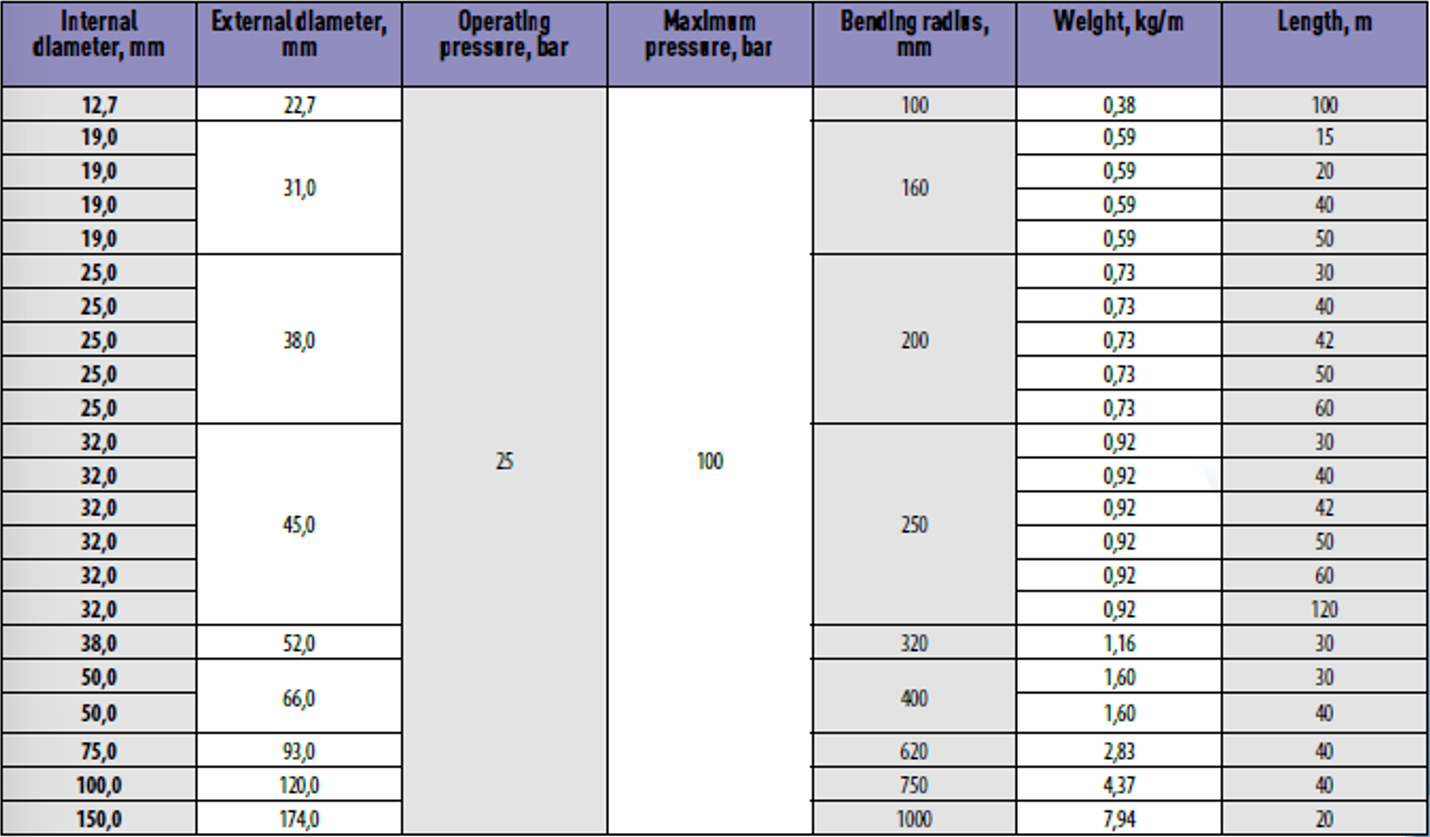

Technical parameters оf LPG hoses Trelleborg BUTANE PROPANE E
